Gear Warning Upgrade Kit installed under stc sA02798se

For Piper PA-34-220T (SN 34-8133001 through 34-8633031 and 3433001 through 3433172)

From operational experience, Absolute Solutions has noted numerous flaws with the factory design which causes operators to often experience:

• Erratic or intermittent operation
• Failure of the throttle position actuation system
• Premature failure of gear horn
• Increased maintenance and parts cost
• Increased aircraft down time

The Gear Warning Upgrade will provide operators with a much more reliable way to achieve the same level of safety as the original system was designed to provide.

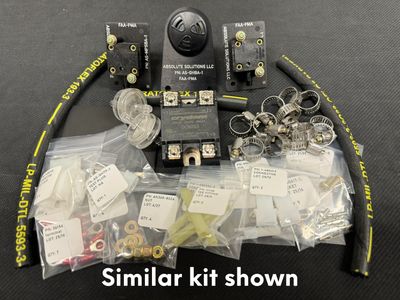

Our system incorporates a modern, piezo-electric gear horn with increased durability over the 565-288 horn. In fact, the factory horns are so unreliable, some operators replace multiple horns a year maintaining their Piper fleets. At an average cost of $800 a horn, costs quickly add up.

In addition to a better horn, we replace the throttle position switches with a solid-state relay and two manifold pressure switches. This ensures accurate, repeatable horn operation, as any mechanical slop in the throttle controls has no bearing on switch actuation. The system can be tested and adjusted on the ground, eliminating the need for maintenance check flights.

To make things easy, all factory wiring is retained. Only minor wiring modification is required.
